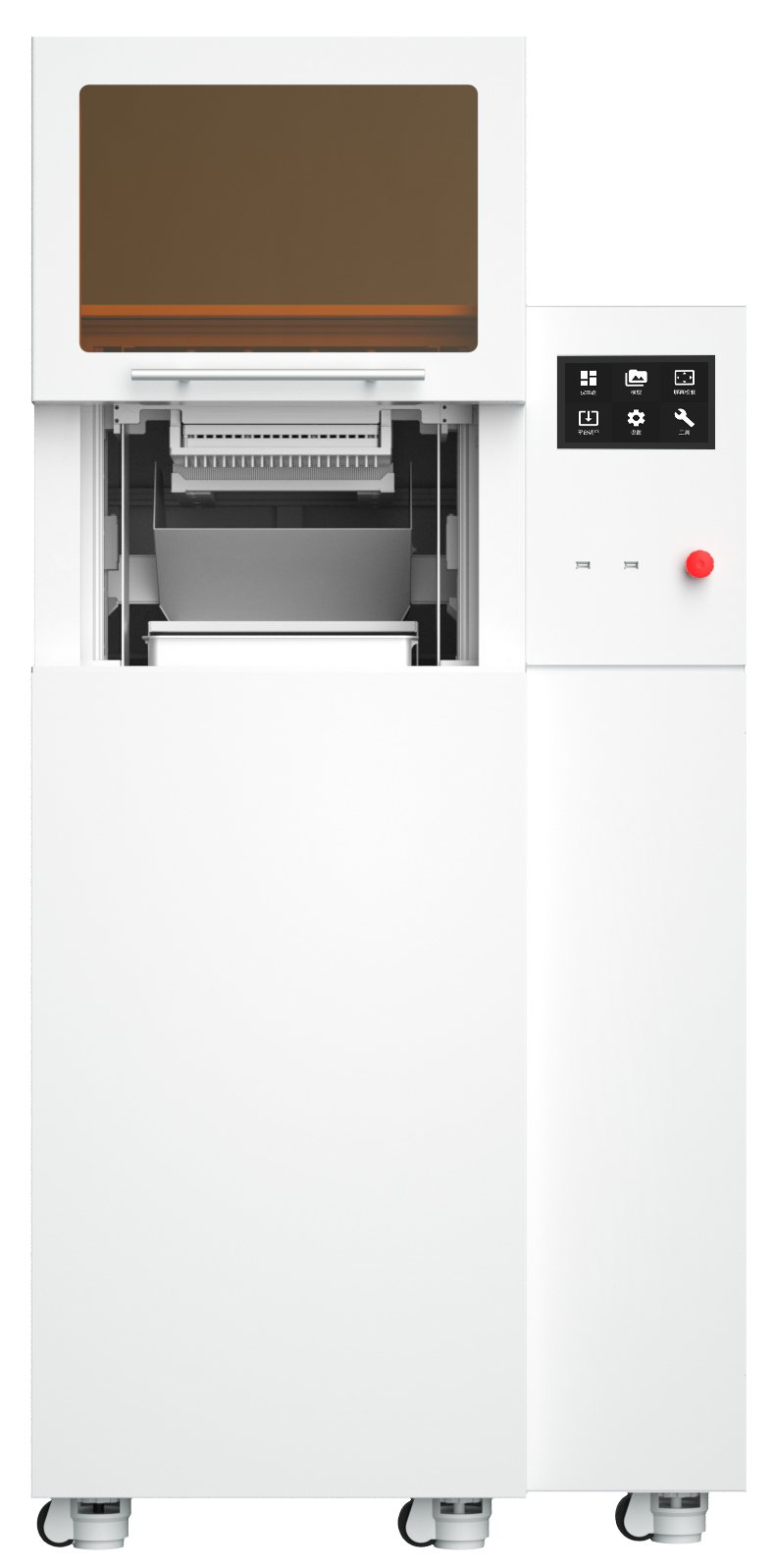

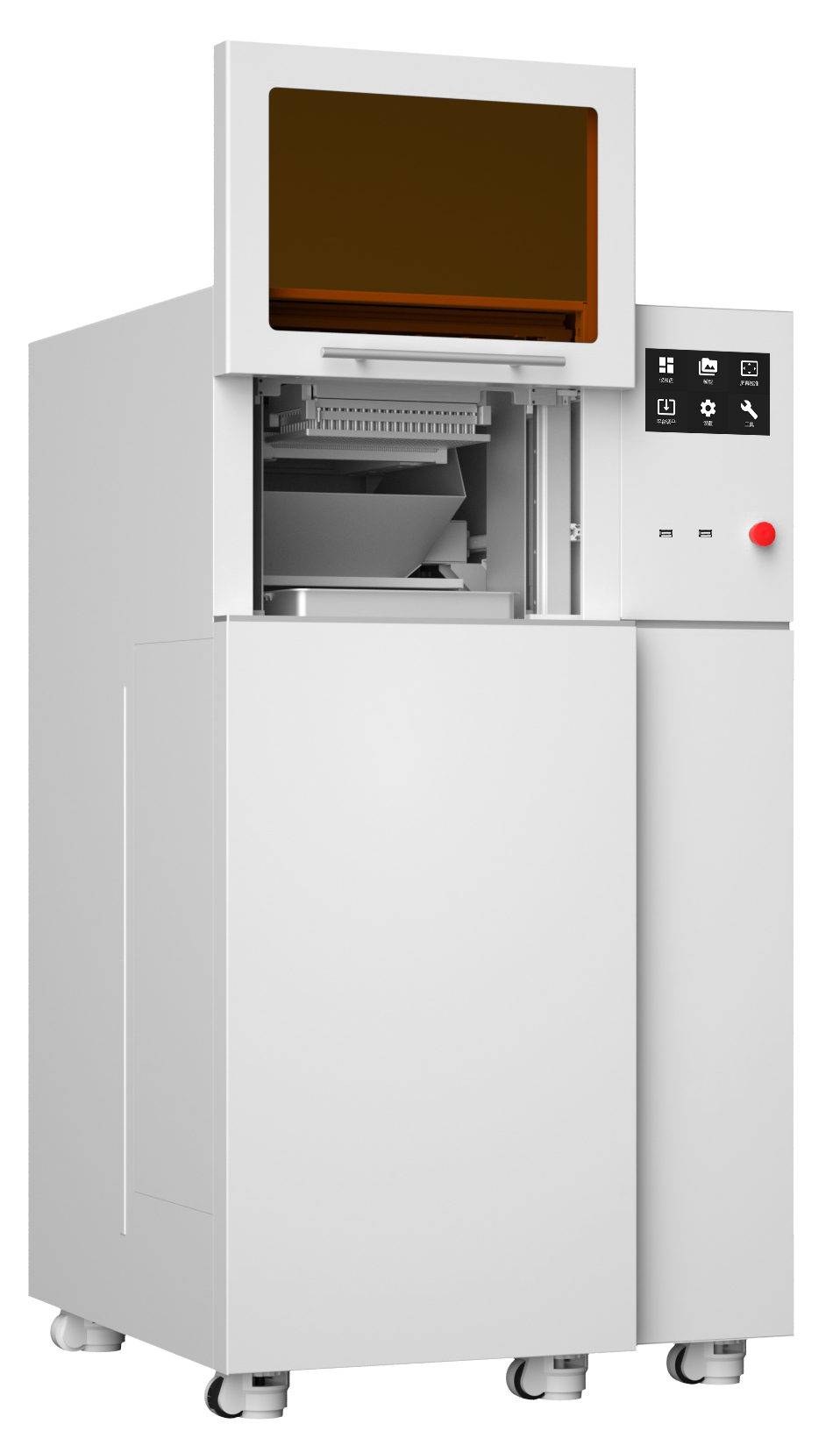

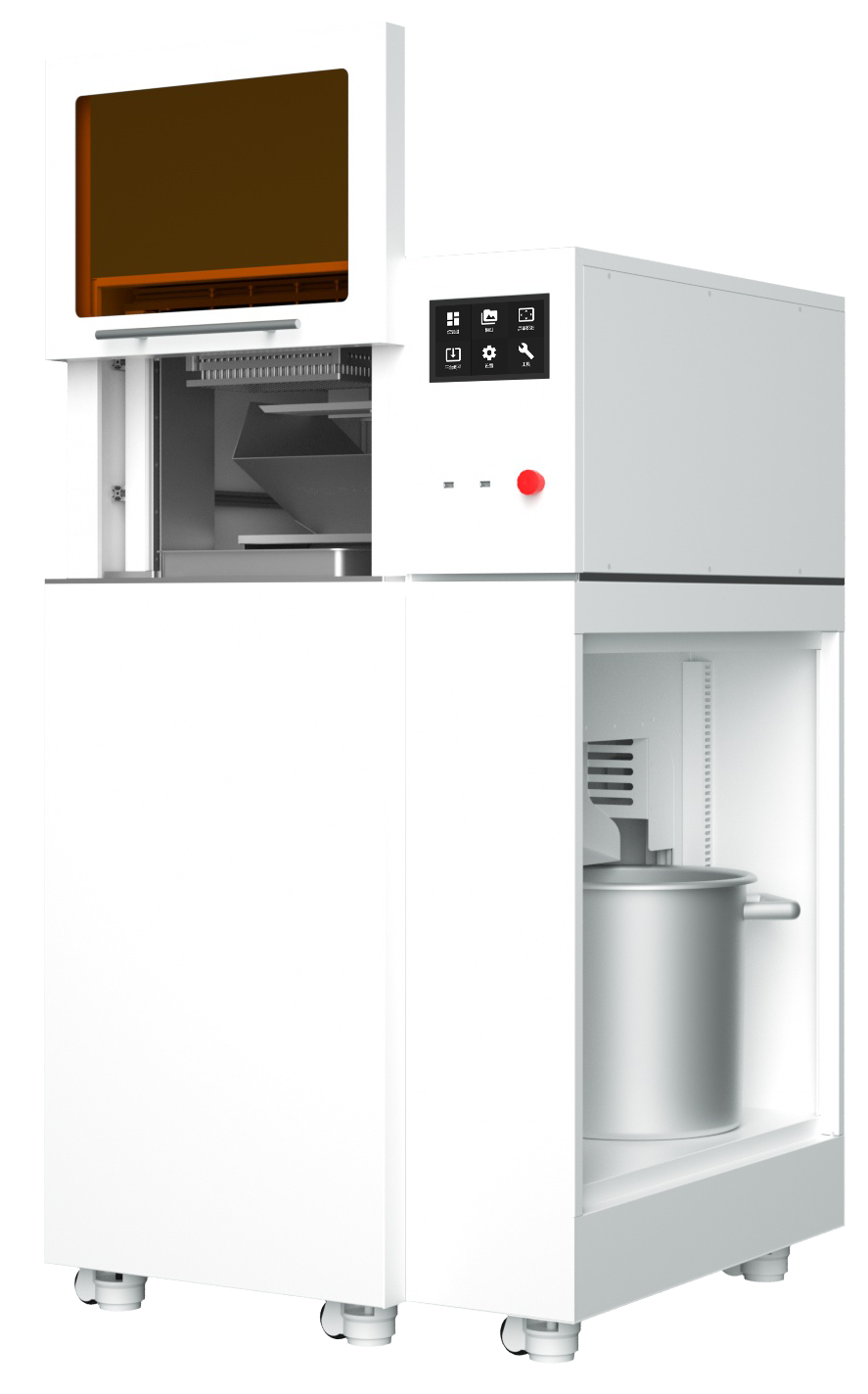

IZOS 10-Inch 16K Auto Aligner Printer, Automated Dental 3D Printer, Continuous Aligner 3D Printer, 16K Dental MSLA Printer, Auto Shovel Dental Printer, Orthodontic Model 3D Printer
Details
Key Features & Selling Points
10-Inch 16K Ultra-High Precision: Equipped with a 10.1-inch 16K monochrome LCD (15120 x 6230P) achieving sub-25 μm XY resolution, capturing precise gingival margins and tooth contours.
Fully Automated Stripping & Continuous Printing: Built-in auto-shovel mechanism automatically separates printed aligner models and releases them into the storage bin, enabling seamless 24/7 overnight batch production.

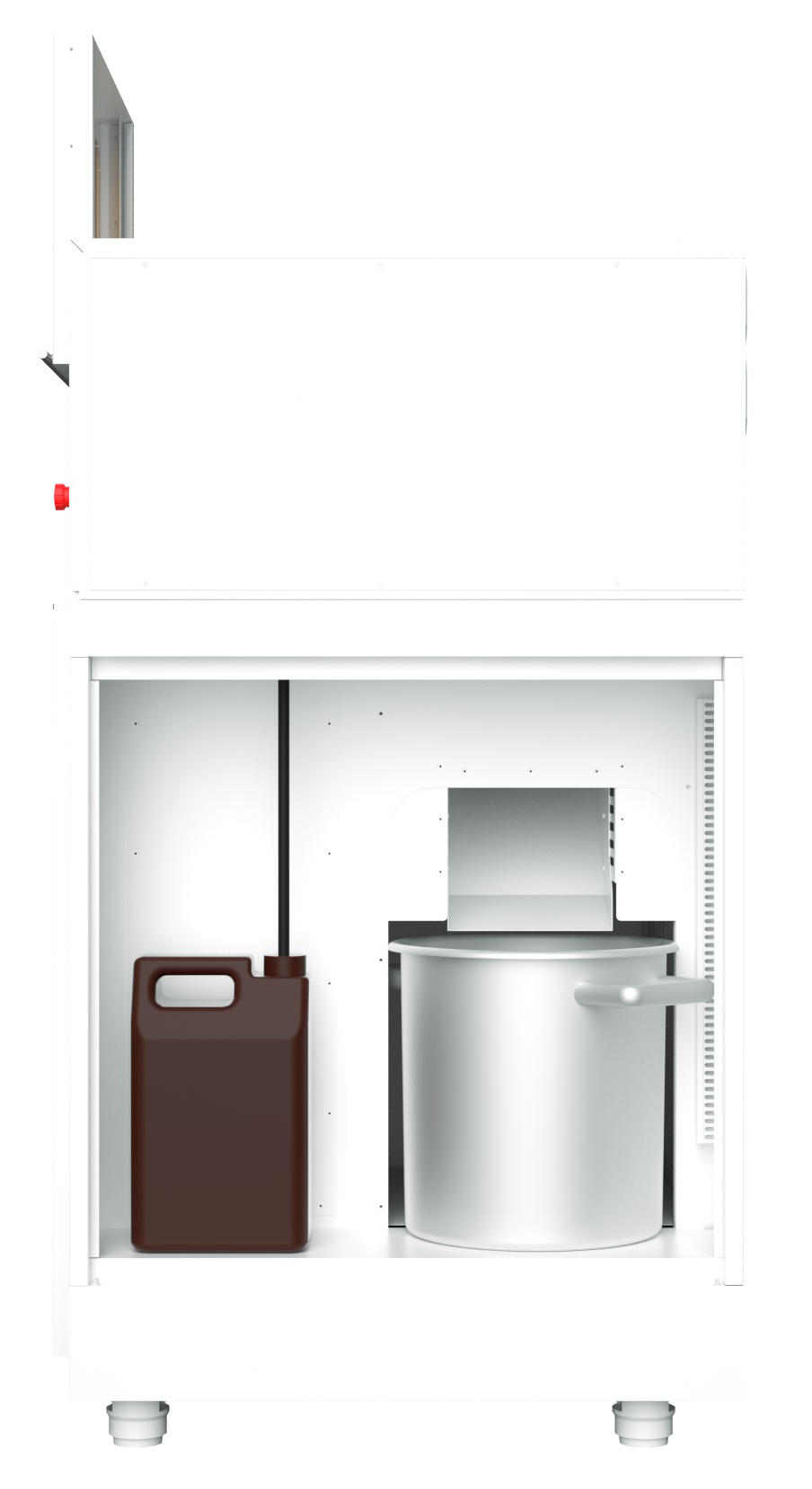

Automated Resin Feeding & Foreign Object Detection: Integrated smart resin supply and recycling system paired with pressure sensors to detect vat residues, protecting the screen from tank punctures.
Vertical Laser LED Optical Engine (>93% Uniformity): Parallel vertical light source achieves over 93% average light intensity uniformity, guaranteeing edge-to-edge accuracy across all 8-10 printed dental models per batch.
Heavy-Duty Servo Control Z-Axis: C5-grade grinding ball screw with closed-loop servo motor ensures Z-axis reciprocal accuracy within 0.002 mm, eliminating layer lines and horizontal striations.
Open System & Remote Cloud Operation: Fully open 405nm (385nm optional) wavelength allows free resin selection, while LAN/Wi-Fi connection enables real-time mobile app and remote browser control.
Technical Specifications
| Parameter Item | Specification |
| Model | IZOS 10-Inch 16K Auto Aligner Printer |
| Technology | Industrial MSLA / LCD Light Curing |
| LCD Screen | 10.1-inch 16K Monochrome Display (15120 x 6230P) |
| Forming Accuracy | ±30 μm |
| Build Volume | 211 x 118 x 45 mm |
| Printing Speed | Max 30 mm/h |
| Wavelength | 405 nm |
| Light Uniformity | >93% (High-Power Vertical Laser LED) |
| Z-Axis Precision | C5 Ball Screw + Servo Motor (≤0.002 mm error) |
| Automation System | Auto Stripping / Resin Feeding & Recycling / Vat residue check |
| User Interface | 7-inch LCD Capacitive Touch Screen |
| Device Dimensions | 750 x 760 x 1290 mm |
| Equipment Weight | 152 kg |
Target Applications
Clear Aligner Model Mass Production: Engineered for $24/7$ continuous, unattended printing of clear aligner / orthodontic physical models with automated model stripping and collection
. High-Precision Crown & Bridge Models: Ideal for removable die models, implant master models, and full-arch restorative models requiring sub-$25\,\mu\text{m}$ margin precision
. Surgical Implant Guides: Supports high-accuracy printing of biocompatible surgical drill guides with precise sleeve fitting
. Castable Wax Crowns & Partial Denture Frameworks: Smooth surface reproduction for direct-casting wax-ups, partial denture bases, and removable frameworks
. Dentistry & Orthodontic Nighttime Production: Tailored for medium-to-large dental laboratories and orthodontic centers aiming to run automated overnight batches without manual labor
.
