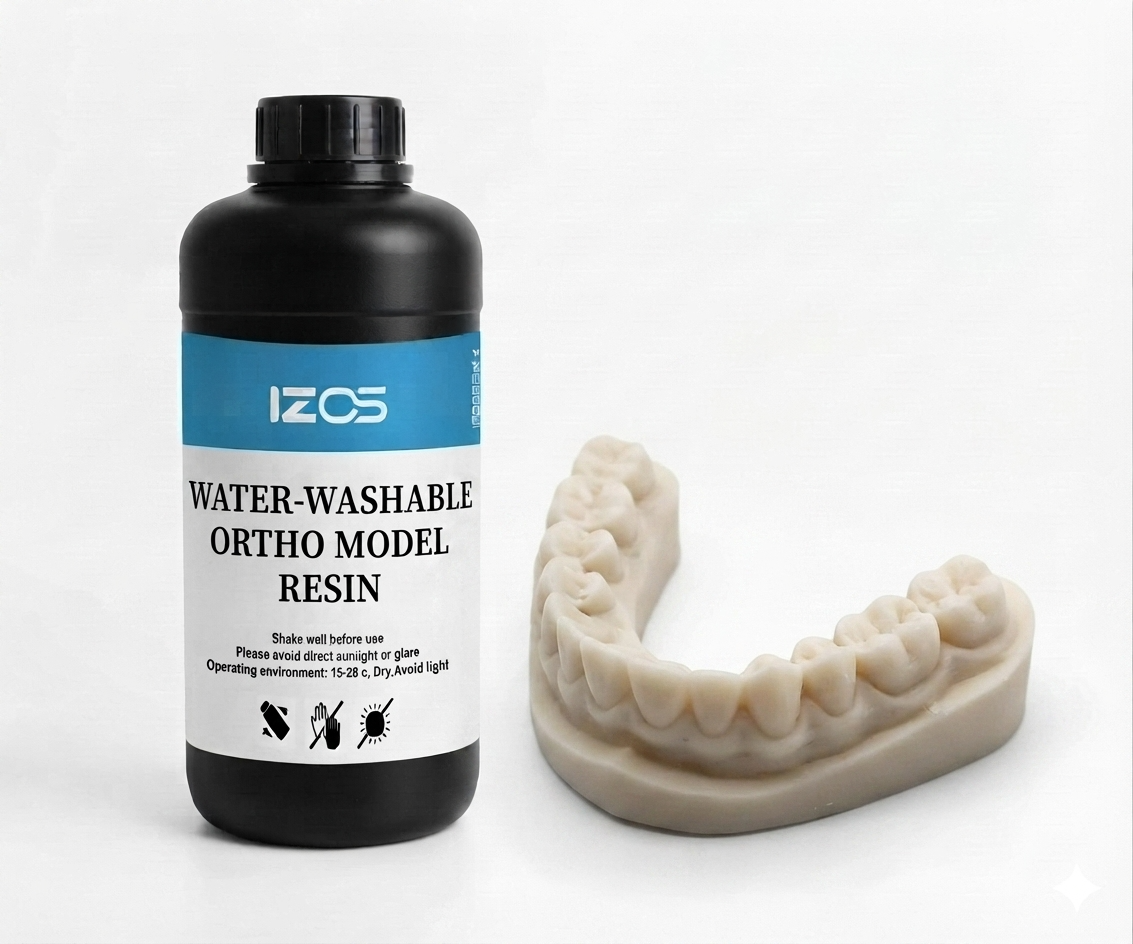

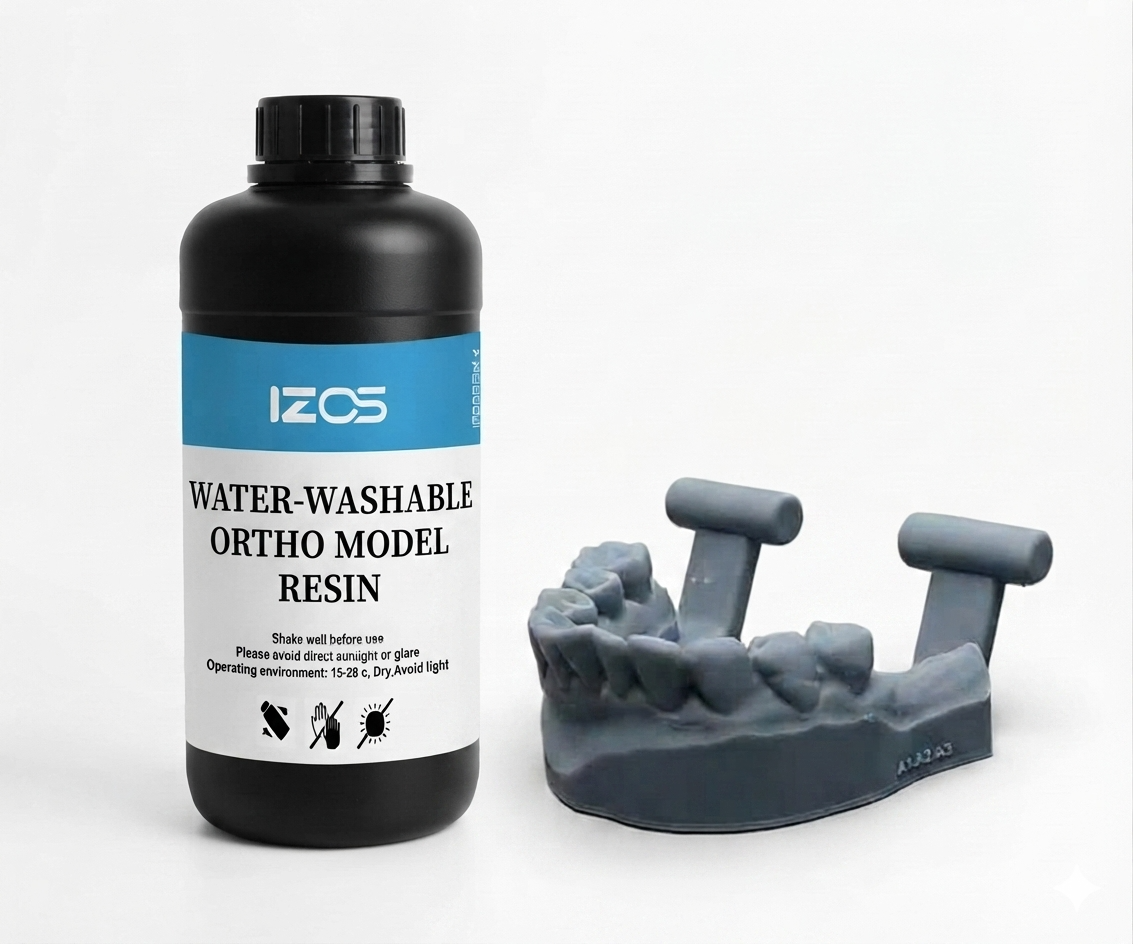

IZOS Water Washable Ortho Model Resin is a high-precision dental resin for water-washable 3D printing. Featuring low viscosity, low odor, high temperature resistance, and high surface hardness (>83D),
Details
Product Features
Easy Water-Washable Workflow: quick water rinsing, , lowering operational costs, and maintaining an eco-friendly lab environment.
Low Viscosity & Low Odor: fluid viscosity for fast leveling and easy printing, paired with a low-odor formula for lab technicians.
Combine Hardness with Tensile Strength ( 83D): delivers a high surface hardness while retaining essential tensile toughness, preventing printed models and delicate margin lines from cracking during post-processing.
Superior High-Temperature Resistance: endure the high-temperature of hot-press thermoforming instruments with minimal thermal deformation.
High Precision & Low 2-Week Volumetric Shrinkage: Guarantees razor-sharp margin clarity and long-term dimensional stability with ultra-low volumetric shrinkage even after 2 weeks,
Smooth Surface & Non-Glare Finish:Produces clean, micro-detail accuracy with a smooth surface texture that reduces light reflection during intraoral scanner alignment and lab inspection.
Technical Specifications
Parameter Item | Specification |
| Product Model | IZOS Water Washable Ortho Model Resin |
| Available Colors | Beige , Gray, White |
| Shore Hardness | 80D - 84D |
| Viscosity (25°C) | 200 - 300 mPa·s |
| Liquid Density | 1.08 - 1.15 g/cm³ |
| Flexural Strength | 39.5 - 45.0 MPa |
| Tensile Strength | 45.0 - 50.0 MPa |
| Elongation at Break | 3.5% - 5.0% |
| Volumetric Shrinkage | < 2.5% |
| Shelf Life | 1 Year (Stored below 25°C in dark/dry place) |
Product Applications
Orthodontic Aligner Models: High-precision thermoforming master models for clear aligners, retainers, and nightguards.
Hot-Press Vacuum Molded Models: High-temperature resistant working models subjected to heavy-duty thermal press machinery.
Diagnostic & Study Models:High-resolution orthodontic study models for clinical treatment planning and consultation.
Instructions & Usage Precautions
Preparation:Shake thoroughly for 2 minutes before pouring into the resin vat to ensure uniform pigment distribution.
Cleaning:Wash printed models directly in clean running water or an ultrasonic water bath for 3–5 minutes.
Drying: Thoroughly dry the model with compressed air or a soft cloth before post-curing to avoid surface white marks.
Post-Curing:Post-cure under 405nm UV light for 3–5 minutes to achieve maximum surface hardness and thermal stability.
Storage: Store in a sealed original container in a cool, dark, and dry place below 25°C.
