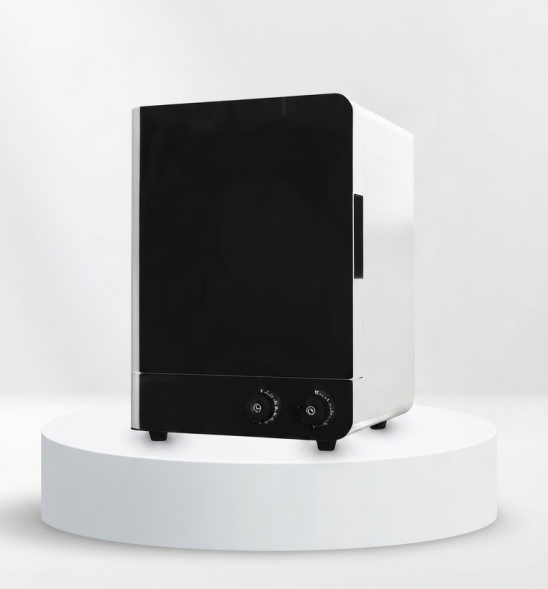

IZOS Post Cure 400

IZOS Post Cure 400 is an industrial-grade post-curing chamber engineered for dental models, aligners, and large 3D prints. Featuring a 400x400x400mm curing volume, 360° underwater UV curing, and const

Details

Key Features:

$400\times400\times400\text{ mm}$ Extra-Large Capacity: Easily handles high-volume batch production of full dental model trays, aligners, and large industrial prototypes.
$360^\circ$ Underwater Optical Curing: Water-refraction technology eliminates surface oxygen inhibition, delivering completely non-sticky surfaces and maximum mechanical strength.
Precision Thermal Control ( $0\text{--}50^\circ\text{C}$ ): Built-in constant heating ensures precise temperature management for biocompatible dental resins and temperature-sensitive materials.
Heavy-Duty Safety Chassis: Metal body equipped with an auto-off UV safety sensor when the door is opened, ensuring safe operation in labs and clinics.

Technical Specifications

Specification Item	Value
Model	IZOS Post Cure 400
Chamber Dimensions	$400 \times 400 \times 400\text{ mm}$
Underwater Curing Range	$\Phi 260 \times 300\text{ mm}$
UV Wavelength	$405\text{ nm}$
Light Density	Average $60\text{ mW/cm}^2$
Thermal Heating	Constant Temperature 0 - 50 ℃
Curing Timer Range	$5\text{--}30\text{ mins}$
Heating Timer Range	$5\text{--}60\text{ mins}$
Power Consumption	Curing: $120\text{W}$ Heating: $200\text{W}$
Power Supply	AC $220\text{V}$
Machine Dimensions / Weight	$W 420 \times D 405 \times H 550\text{ mm}$ $25\text{ kg}$
