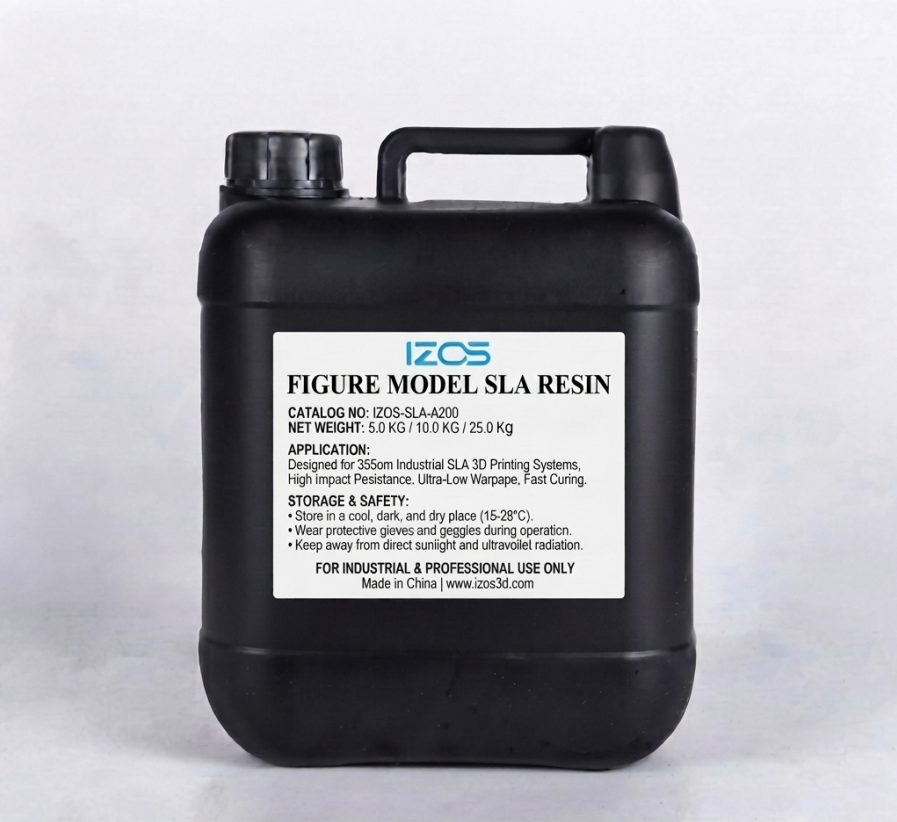

SLA figure model resin is a low volume shrinkage and high precision SLA 355 resin. The printed model with high toughness and precision , with excellent details
Details
Product Feature
Good stability smooth surface, low shrinkage, fast curing speed, high toughness and strength, low water absorption rate, easy cleaning of the
Finished products have good surface texture, and easier for high post-processing .
Product Application
HM-1410 can be used to print anime master model ，anime figure hair, GK model and fashion toys. It can also be used for the printing of original concept models and functional parts
TYPICAL UNCURED PROPERTIES | |
Chemical Type | Acrylate/Epoxy resin |
Appearance | White |
Density ，g/cm³@25℃ | 1.10 ~ 1.16 |
Viscosity ，cps@25℃,100rpm | 260 ~ 410 |
CURING GUIDELINES | |
Curing Method | UV Curing Light |
Wavelength ，nm | 355 |
Ec critical exposure，mJ/cm² | 8.8 ~ 9.6 |
Dp Depth of cure，mm | 0.130 ~ 0.155 |
Building Layer Thickness ，mm | 0.05 ~ 0.13 |
Using Temperature ，℃ | 18 ~ 28 |
TYPICAL CURED PROPERTIES | ||
MEASUREMENT | VALUE | TEST METHOD |
Density ，g/cm³ | 1.12 ~ 1.20 | ASTM D792 |
Tensile Modulus ，MPa | 2500 ~ 2700 | ASTM D638M |
Tensile Strength ，MPa | 40 ~ 54 | ASTM D638M |
Elongation At Break ，% | 11 ~ 16 | ASTM D638M |
